麦格思维特的兄弟公司Maximator VETEQ 设计制造的气瓶耐压试验台主要用于氢气复合气瓶生产线的耐压试验。
国家和国际法规以及客户规范要求在气瓶生产线末端要进行压力测试，以确保每件容器的强度和安全性。

气瓶耐压试验台采用水作为测试介质，包括自动填充和排水过程。此外，还采用CGA批准的智能缩放技术进行气瓶膨胀测量。

气瓶耐压试验台具有以下优点：
- 装载方式：手动或自动
- 测试介质：洁净水
- 测量：智能缩放技术
- 测试压力：350 bar 或 700 bar
- 测试样品体积：20-600 L
- 测试气瓶长度：600-4000 mm
- 测试气瓶直径：150-800 mm
- 水回收率：高达98%
- 循环时间：10-180分钟

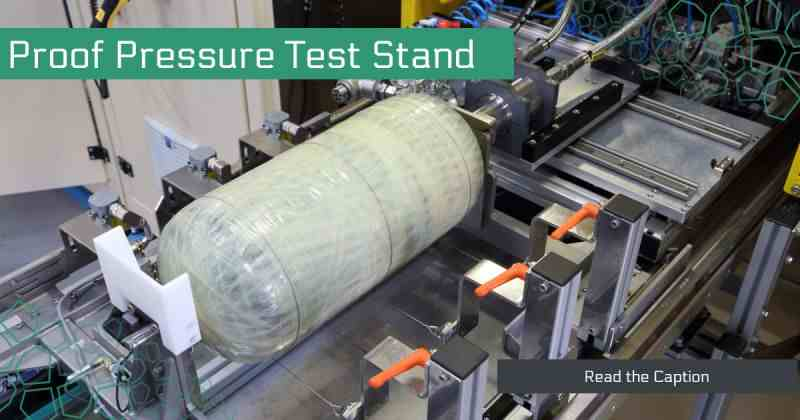

The use case of the Maximator VETEQ proof pressure test stand is the proof test at the end of the production process of hydrogen composite pressure vessels.
National and international regulations as well as customer specifications mandate end-of-line proof pressure testing to ensure strength and safety of every vessel.

The proof test is performed with water and includes an automatic filling and draining process. In addition, the required expansion measurement is performed using an intelligent, CGA approved scaling process.

The proof pressure test stand is characterised by the following benefits:

- Loading style: manual or automatic
- Test fluid: 100% water
- Measurement: intelligent scaling process
- Test sample pressure: 350 bar or 700 bar
- Test sample volume: 20-600 L
- Test sample length: 600-4000 mm
- Test sample diameter: 150-800 mm
- Water recovery rate: up to 98%
- Cycle time: 10-180 min
