MAXIMATOR土耳其公司设计制造的该阀门测试系统配备两个独立的测试工位，分别兼容50T和150T的反作用力。50吨工位可测试DN15至DN150的阀门，150吨工位可测试DN200至DN400的阀门。

该阀门测试台能够同时进行两种不同直径和压力下的阀门测试，并配有用户友好的操作界面，支持10种语言的操作和报告生成。通过条形码读取功能，可自动将信息传输至结果报告。

根据阀门直径，测试台可执行Class 150至Class 2500等级的测试。具体测试项目和标准如下：

测试项目：

· 阀体测试（壳体）

· 内部密封性测试（阀座）

· 跌落测试（跌落）

· 气泡测试（渗漏）

测试标准：

· API 6D、API 598、API 600

· ISO 5208国际标准

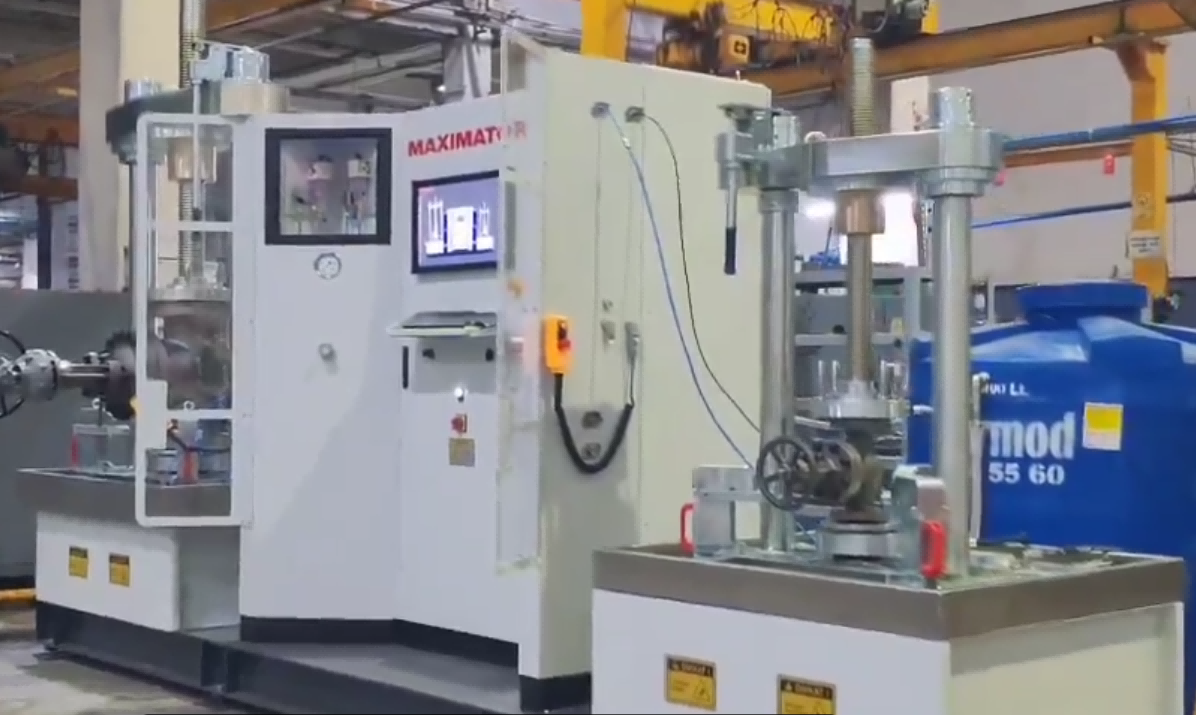

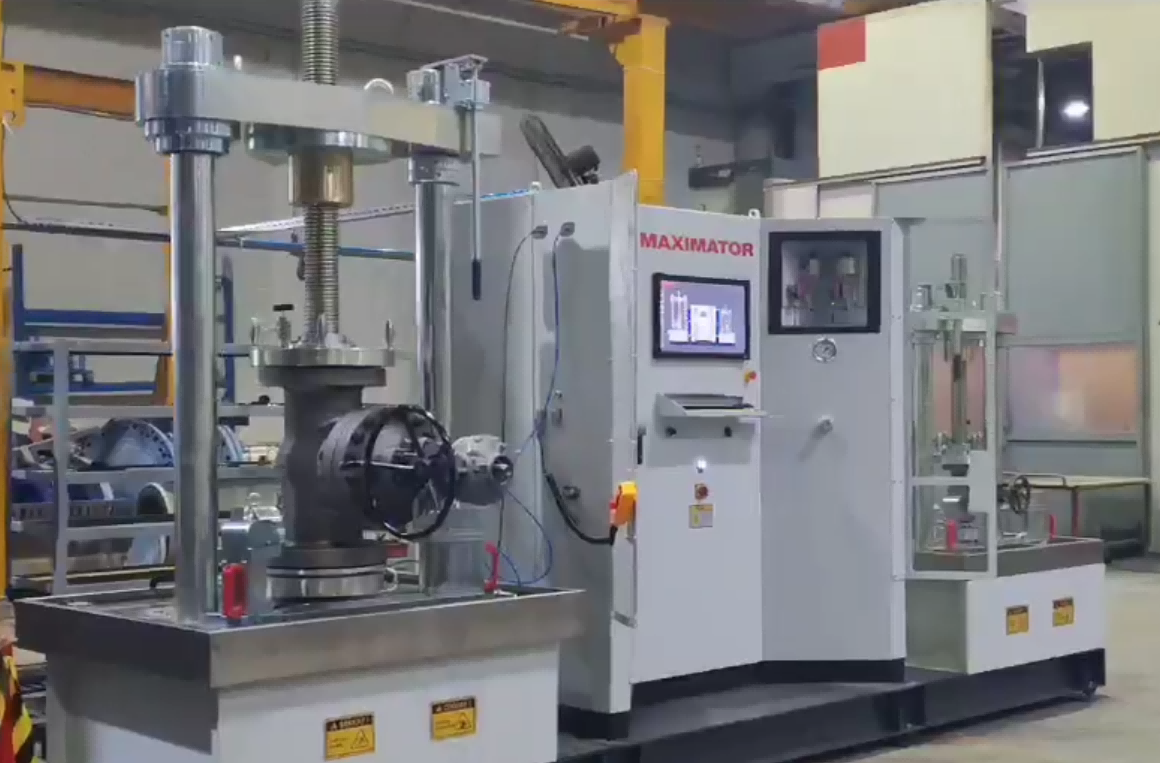

VALVE TEST SYSTEM VTS 50-150

 The Test Bench is equipped with two separate test stations compatible with a reaction force of 50 and 150 tonnes. At the 50 tonne station, valves from DN 15 to DN 150 and at the 150 tonne station, valves from DN 200 to DN 400 can be tested.

The Valve Test Bench is capable of performing valve tests under two different diameters and pressures at the same time and offers the opportunity to use and report in 10 different languages with its user-friendly operator interface. With the barcode reading function, it can automatically transfer the information in the result report.

According to the diameters of the valves, tests between Class 150 and Class 2500 can be performed in the test bench. These tests and standards are as follows.

Tests:
- Body Test (Shell)
- Internal Tightness Test (Seat)
- Drop test (Drop)
- Bubble Test (Bubble)

Standards:
- API 6D, API 598, API 600, ISO 5208
